Handlers

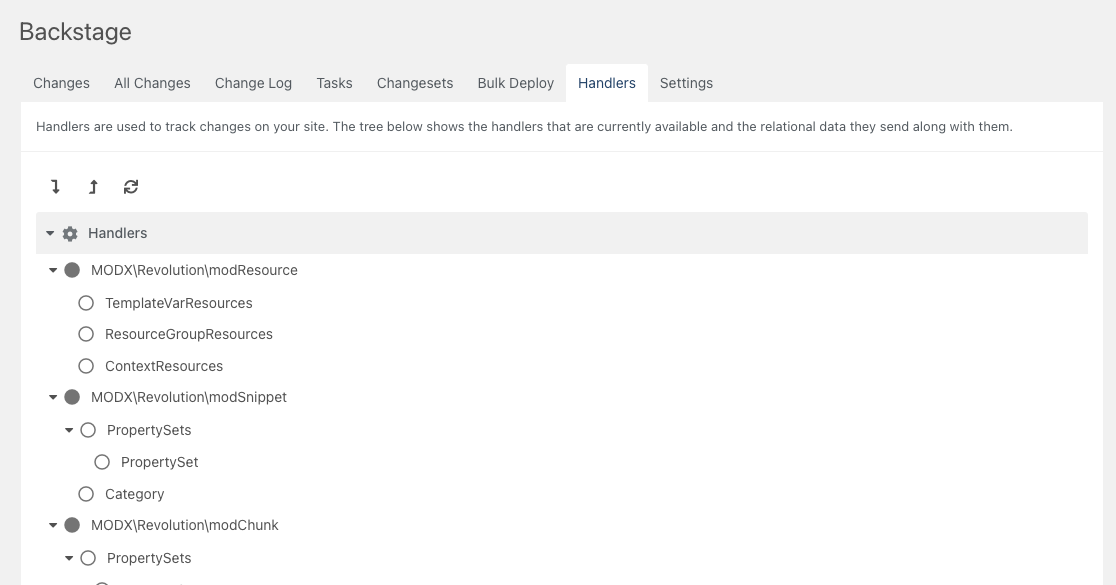

The Handlers tab shows you a list of all the handlers that have been created in Backstage. Handlers are used to define the behavior of a change when it is deployed. This is useful for visualizing the objects that are tracked and the data sent with them.

Adding a Custom Handler

If you need to track additional items you can implement the GenericHandler in a plugin. Below is example code for a custom handler in MODX to track context settings.

<?php

use Backstage\v3\Callback\Handlers\GenericHandler;
use MODX\Revolution\modContextSetting;
use xPDO\Transport\xPDOTransport;

/** Plugin Name: Backstage.ContextSettings
 *  Event: BackstageCallbackInit
 */

$handlersMap = $scriptProperties['handlersMap'];

$handlersMap->addHandler(modContextSetting::class, GenericHandler::getInstance(
        $modx,
        function($data){
            // return label/name for the changed grid
            return $data['object']->context_key . ' - ' . $data['object']->key;
        },
        function($data){
            // return primary key
            return [
                'context_key' => $data['object']->context_key,
                'key' => $data['object']->key,
            ];
        },
        function () {
            // return the object graph
            return [
                'graph' => [],
                'attributes' => [
                    xPDOTransport::PRESERVE_KEYS => true,
                    xPDOTransport::UPDATE_OBJECT => true,
                    xPDOTransport::RELATED_OBJECTS => false,
                ]
            ];
        }
));

<?php

/** Plugin Name: Backstage.ContextSettings
 *  Event: BackstageCallbackInit
 */

$bsCore = $modx->getOption('backstage.core_path', null, $modx->getOption('core_path', null, MODX_CORE_PATH) . 'components/backstage/');
/** @var Backstage $backstage */
$backstage = $modx->getService(
    'backstage',
    'Backstage',
    $bsCore . 'model/backstage/',
    [
        'core_path' => $bsCore
    ]
);

$handlersMap = $scriptProperties['handlersMap'];

$handlersMap->addHandler(
    'modContextSetting',
    \Backstage\v2\Callback\Handlers\GenericHandler::getInstance(
        $modx,
        function($data){
            // return label/name for the changed grid
            return $data['object']->context_key . ' - ' . $data['object']->key;
        },
        function($data){
            // return primary key
            return [
                'context_key' => $data['object']->context_key,
                'key' => $data['object']->key,
            ];
        },
        function () {
            // return the object graph
            return [
                'graph' => [],
                'attributes' => [
                    xPDOTransport::PRESERVE_KEYS => true,
                    xPDOTransport::UPDATE_OBJECT => true,
                    xPDOTransport::RELATED_OBJECTS => false,
                ]
            ];
        }
));

Extending an Existing Handler

Similar to custom handlers, you can create a plugin that extends or alters an existing handler class. The example below shows how to extend MODX to handle MIGX Template Variables on a Resource.

<?php

use \Backstage\v3\Callback\Handlers\Resource;
use \MODX\Revolution\modResource;
use \MODX\Revolution\modTemplateVar;

/** Plugin: Backstage.MIGX
*   Event:  BackstageCallbackInit
**/

if (!class_exists('MIGXResourceHandler')) {
    class MIGXResourceHandler extends Resource
    {
    // overide the Find Template Variable assets functionality
        public function findTVAssets($resource, array &$assets, $assetsTVs): void
        {
            parent::findTVAssets($resource, $assets, $assetsTVs);
            $resourceArray = $resource->toArray();
            // The IDs of the MIGX TVs
            $migxTVs = [4, 76];
            foreach ($migxTVs as $assetTV) {
                if (!isset($resourceArray['tv' . $assetTV])) {
                    continue;
                }
                /** @var modTemplateVar $tv */
                $tv = $this->modx->getObject(modTemplateVar::class, ['id' => $assetTV]);
                if (!$tv) {
                    continue;
                }

                $src = json_decode($resourceArray['tv' . $assetTV], true);
                foreach ($src as $value) {
                    // The field of the image to check within the MIGX TV
                    if (isset($value['Image'])) {
                        $this->addSrc($assets, $value['Image']);
                    }
                }
            }
        }
    }
}

$handlersMap =& $scriptProperties['handlersMap'];
$handlersMap->addHandler(
    modResource::class,
    new MIGXResourceHandler($modx),
    true
);

<?php

/** Plugin: Backstage.MIGX
*   Event:  BackstageCallbackInit
**/

$bsCore = $modx->getOption('backstage.core_path', null, $modx->getOption('core_path', null, MODX_CORE_PATH) . 'components/backstage/');
/** @var Backstage $backstage */
$backstage = $modx->getService(
    'backstage',
    'Backstage',
    $bsCore . 'model/backstage/',
    [
        'core_path' => $bsCore
    ]
);

if (!class_exists('MIGXResourceHandler')) {
    class MIGXResourceHandler extends \Backstage\v2\Callback\Handlers\Resource
    {
    // overide the Find Template Variable assets functionality
        public function findTVAssets($resource, array &$assets, $assetsTVs): void
        {
            parent::findTVAssets($resource, $assets, $assetsTVs);
            $resourceArray = $resource->toArray();
            // The IDs of the MIGX TVs
            $migxTVs = [4, 76];
            foreach ($migxTVs as $assetTV) {
                if (!isset($resourceArray['tv' . $assetTV])) {
                    continue;
                }
                /** @var \modTemplateVar $tv */
                $tv = $this->modx->getObject('modTemplateVar', ['id' => $assetTV]);
                if (!$tv) {
                    continue;
                }

                $src = json_decode($resourceArray['tv' . $assetTV], true);
                foreach ($src as $value) {
                    // The field of the image to check within the MIGX TV
                    if (isset($value['Image'])) {
                        $this->addSrc($assets, $value['Image']);
                    }
                }
            }
        }
    }
}

$handlersMap =& $scriptProperties['handlersMap'];
$handlersMap->addHandler(
    'modResource',
    new MIGXResourceHandler($modx),
    true
);

Last modified: 04 February 2025
